Simco-Ion HDC & HDR Charging Bars

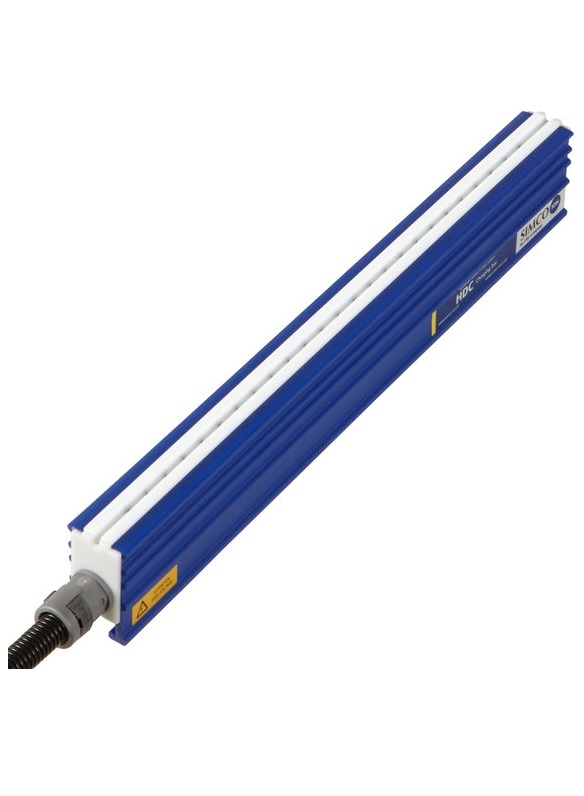

HDC charging bar
These rugged charging bars are used in a variety of industrial applications. The slot at the rear of the charging bar permits easy mounting. HDC charging bars are provided with a resistor to avoid failures in the machine control system in the event of accidental spark-over. The cable output may be straight or right-angled (90°).
Technical specifications
| Working distance | 20 mm using <30 kV |
| 75 mm using 30-60 kV | |
| Housing material | PVC |
| Ionisation points | special alloy |
| Cable | high voltage cable with PA protective sleeve |
| Weight | 1 kg/m |
| Ambient temperature | 0 - 55 °C |
| Use circumstances | industrial |
| Operating voltage | 0 - 60 kV DC |
| Options | right angle cable exit |
| Suitable power unit | ECM Lite, CM5 |
| *Verify with Simco the correct productchoice suitable for your application. |
HDR charging bar
The HDR charging bar suits highvelocity applications. Each individual point being fitted with a resistor, so the change of spark-over is strongly reduced.
Technical specifications
| Working distance | 20 mm using <30 kV |
| 75 mm using 30-60 kV | |
| Housing material | PVC |
| Ionisation points | special alloy |
| Cable | high voltage cable with PA protective sleeve |
| Weight | 1,6 kg/m |
| Ambient temperature | 0 - 55 °C |
| Use circumstances | industrial |
| Operating voltage | 0 - 60 kV DC |
| Options | right angle cable exit |
| Suitable power unit | ECM Lite, CM5 |
